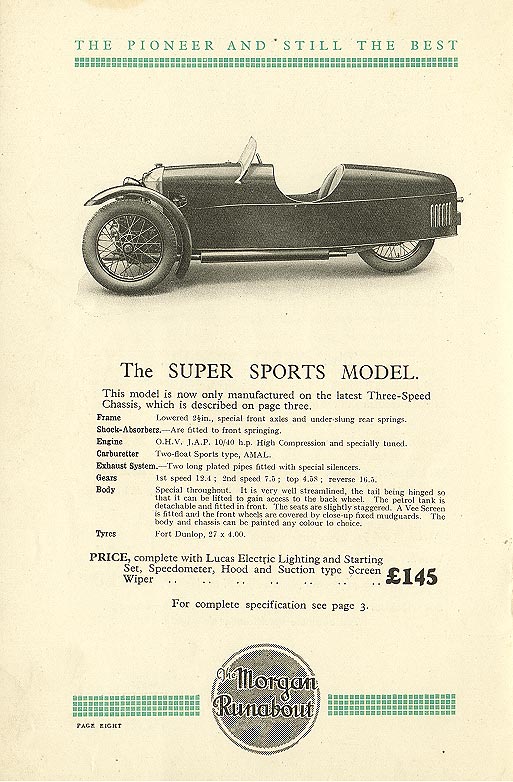

| This model is now only manufactured on the latest Three-Speed Chassis, which is described on page three. | |
| Frame | Lowered 2½in., special front axles and under-slung rear springs. |
| -Are fitted to front springing. | |
| Engine | 0.H.V. J.A.P. 10/40 h.p. High Compression and specially tuned. |
| Carburetter | Two-float Sports type, AMAL. |
| Exhaust System. | -Two long plated pipes fitted with special silencers. |
| Gears | 1st speed 12.4 ; 2nd speed 7.5 ; top 4.58 ; reverse 16.5. |
| Body | Special throughout. It is very well streamlined, the tail being hinged so that it can be lifted to gain access to the back wheel. The petrol tank is detachable and fitted in front. The seats are slightly staggered. A Vee Screen is fitted and the front wheels are covered by close-up fixed mudguards. The body and chassis can be painted any colour to choice. |
| Tyres | Fort Dunlop, 27 x 4.00. |
PRICE, complete with Lucas Electric Lighting and Starting Set, Speedometer, Hood and Suction type Screen Wiper | £145 |
For complete specification see page 3. | |
PAGE EIGHT
